Selecting the Physics Models

You use the Eulerian Multiphase (EMP) model to simulate the interaction of the air-water mixture and the settling of phases within the separator. To simulate turbulence for individual phases, you use the Mixture Turbulence model. This model is appropriate for multiphase flows characterized by phase separation, where the two phases become distinctly segregated.

To select the physics models:

  1. For the physics continuum, Continua > Physics 1, select the following models in order:

    Group Box

    Model

    Space

    Two Dimensional (pre-selected)

    Time

    Implicit Unsteady

    Material

    Multiphase

    Multiphase Interaction (selected automatically)

    Multiphase Model

    Eulerian Multiphase (EMP)

    Gradients (selected automatically)

    Viscous Regime

    Turbulent

    Reynolds-Averaged Navier-Stokes

    K-Epsilon Turbulence

    Two-Layer All y+ Wall Treatment (selected automatically)

    Wall Distance (selected automatically)

    Realizable K-Epsilon Two-Layer (selected automatically)

    EMP Turbulence Mixture Turbulence
    Reynolds-Averaged Turbulence K-Epsilon Turbulence

    Two-Layer All y+ Wall Treatment (selected automatically)

    Wall Distance (selected automatically)

    Optional Models

    Gravity

  2. Click Close.

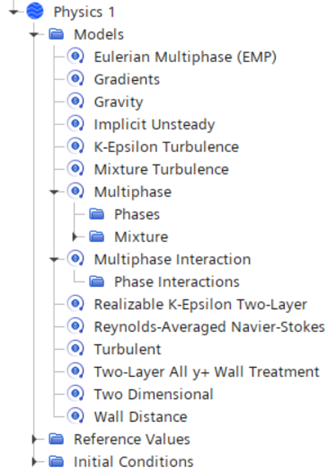

  3. To review the models, open the Physics 1 > Models node.


  4. Save the simulation.
