Setting Up the Models
Models define the primary variables of the simulation, including pressure, temperature, velocity, and what mathematical formulation is used to generate the solution. In this example, the flow is laminar and incompressible.
The Segregated Energy model is used together with the Surface-to-Surface Radiation model to determine the temperature field.
As there are two materials (air and glass) present, two regions are required for the analysis. You define two sets of Physics continuum models, each appropriate to a different region. By default, and are automatically created when the mesh is imported. You use these continua for the fluid and the solid.
- Rename the node to Air.
- Rename the node to Glass.
-
For the physics continuum,
, select the following models in order:
Group Box
Model
Enabled Models
Three Dimensional (selected automatically)
Time
Steady
Material
Gas
Flow
Segregated Flow
Gradients (selected automatically)
Equation of State
Constant Density
Viscous Regime
Laminar
Optional Models
Segregated Fluid Temperature
Radiation
Surface Materials (selected automatically)
Radiation
Surface-to-Surface Radiation
View Factors Calculator (selected automatically)
Radiation Spectrum
Gray Thermal Radiation
- Click Close.
-

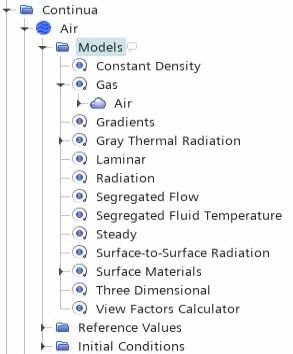

To review the models, expand the node.
-
For the physics continuum,
, select the following models in order:
Group Box
Model
Enabled Models
Three Dimensional (selected automatically)
Time
Steady
Material
Solid
Optional Models
Segregated Solid Energy
Gradients (selected automatically)
Radiation
Surface Materials (selected automatically)
Equation of State
Constant Density
Radiation
Surface-to-Surface Radiation
View Factors Calculator (selected automatically)
Radiation Spectrum
Gray Thermal Radiation
- Click Close.
-

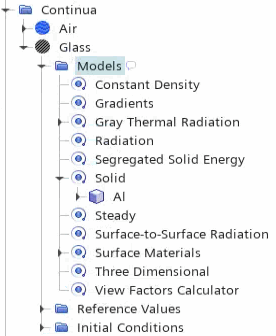

To review the models, expand the node.
- Save the simulation.
