提供互动对话框

可以编辑用于提供互动对话框的宏。

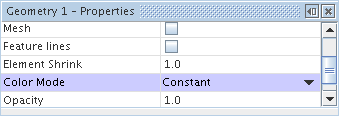

Simcenter STAR-CCM+ 提供很多可视化控制，可用于自定义模拟中显示窗口的外观。 在录制宏时将捕捉这些控制的设置。 例如，创建了简单的宏以将几何场景添加到模拟，并将几何显示器的颜色模式属性更改为 Constant(恒定)。

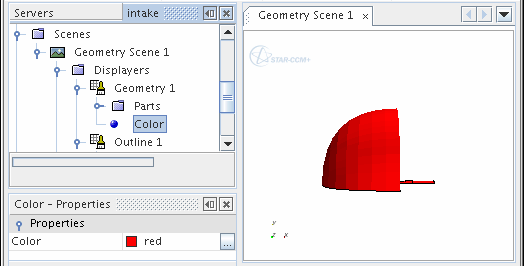

宏编辑过程的下一步涉及将恒定的颜色更改为红色。

名为 partcolor.java 的宏包含以下代码：

// STAR-CCM+ macro: partcolor.java
package macro;
import java.util.*;
import star.common.*;
import star.base.neo.*;
import star.vis.*;
public class partcolor extends StarMacro {
  public void execute() {
    Simulation simulation_1 =
      getActiveSimulation();
    simulation_1.getSceneManager().createGeometrySceneAndWait("Geometry Scene", "Outline", "Geometry", 1);
    Scene scene_1 =
      simulation_1.getSceneManager().getScene("Geometry Scene 1");
    scene_1.initializeAndWait();
    PartDisplayer partDisplayer_3 =
      ((PartDisplayer) scene_1.getDisplayerManager().getDisplayer("Outline 1"));
    partDisplayer_3.initialize();
    PartDisplayer partDisplayer_4 =
      ((PartDisplayer) scene_1.getDisplayerManager().getDisplayer("Geometry 1"));
    partDisplayer_4.initialize();
    PartDisplayer partDisplayer_5 =
      ((PartDisplayer) scene_1.getHighlightDisplayer());
    partDisplayer_5.initialize();
    CurrentView currentView_1 =
      scene_1.getCurrentView();
    currentView_1.setInput(new DoubleVector(new double[] {-0.5333999395370483, 1.268258864962263, 0.0}), new DoubleVector(new double[] {-0.5333999395370483, 1.268258864962263, 14.471860805953908}), new DoubleVector(new double[] {0.0, 1.0, 0.0}), -1.0, 0);
    partDisplayer_4.setColorMode(1);
    partDisplayer_4.setDisplayerColor(new DoubleVector(new double[] {1.0, 0.0, 0.0}));
  }
}

此典型宏代码包含在录制过程中进行的一种颜色选择 — 它保持不变。 但是，当宏包含用户输入的代码时，它将暂停以激活用户可在其中做出选择的对话框。

单击确定时，宏将继续。

为了使其发挥作用，partcolor.jav 的代码具有全新且详细的已修改代码，如下所示：

// STAR-CCM+ macro: partcolor.java
package macro;
import java.util.*;
import star.common.*;
import star.base.neo.*;
import star.vis.*;
import java.io.File;
import java.awt.*;
import javax.swing.*;
import star.base.neo.NeoMacro;
import star.base.neo.NeoScriptFile;
import star.base.neo.NeoDoubleField;
import star.base.neo.NeoIntegerField;
import org.openide.DialogDescriptor;
import org.openide.NotifyDescriptor;
import org.openide.DialogDisplayer;
public class partcolor extends StarMacro {
    public boolean promptUserForInput(String title, JComponent panel) {
        if (System.getProperty("java.awt.headless") == null) {
            if (title == "") {
                title = "Input values";
            }
            DialogDescriptor dd = new DialogDescriptor(panel, title, true, NotifyDescriptor.OK_CANCEL_OPTION, NotifyDescriptor.OK_OPTION, null);
            return DialogDisplayer.getDefault().
                notify(dd) == NotifyDescriptor.OK_OPTION;
        }
        return false;
    }
    public class ColorChoice extends JPanel {
        ButtonGroup group;
        String[] labels = { "Red", "Green", "Blue", "Black", "White", "Gray", "Yellow" };
        Color[] colors = { Color.RED, Color.GREEN, Color.BLUE, Color.BLACK, Color.WHITE, Color.GRAY, Color.YELLOW };
        public ColorChoice() {
            super(new GridLayout(0, 1));
            setBackground(Color.lightGray);
            setBorder(BorderFactory.
                createTitledBorder("Colors"));
            group = new ButtonGroup();
            JRadioButton option;
            for (int i = 0; i < labels.length; i++) {
                option = new JRadioButton(labels[i]);
                if(i==0) option.setSelected(true);
                option.setForeground(colors[i]);
                group.add(option);
                add(option);
            }
        }
        public Color getColor() {
            Enumeration elements = group.getElements();
            while (elements.hasMoreElements()) {
                AbstractButton button = (AbstractButton)elements.nextElement();
                if (button.isSelected()) {
                    String btext=button.getText();
                    for (int i = 0;i < labels.length; i++) {
                        if(btext==labels[i]) return colors[i];
                    }
                }
            }
            return Color.RED;
        }
    }
    public void execute() {
        Simulation simulation_3 =
          getActiveSimulation();
simulation_3.getSceneManager().createGeometrySceneAndWait("Geometry Scene", "Outline", "Geometry", 1);
        Scene scene_3 =
simulation_3.getSceneManager().getScene("Geometry Scene 1");
        scene_3.initializeAndWait();
        PartDisplayer partDisplayer_9 =
          ((PartDisplayer) scene_3.getDisplayerManager().getDisplayer("Outline 1"));
        partDisplayer_9.initialize();
        PartDisplayer partDisplayer_10 =
          ((PartDisplayer) scene_3.getDisplayerManager().getDisplayer("Geometry 1"));
        partDisplayer_10.initialize();
        PartDisplayer partDisplayer_11 =
          ((PartDisplayer) scene_3.getHighlightDisplayer());
        partDisplayer_11.initialize();
        CurrentView currentView_3 =
          scene_3.getCurrentView();
        currentView_3.setInput(new DoubleVector(new double[] {-0.5333999395370483, 1.268258864962263, 0.0}), new DoubleVector(new double[] {-0.5333999395370483, 1.268258864962263, 14.471860805953908}), new DoubleVector(new double[] {0.0, 1.0, 0.0}), -1.0, 0);
        partDisplayer_10.setColorMode(1);
        ColorChoice p = new ColorChoice();
        if (promptUserForInput("Set Color", p)) {
        Color mycolor = p.getColor();
        partDisplayer_10.setDisplayerColorColor(mycolor);
        }
    }
}
