Analyzing the Results
After the simulation is complete, you visualize the results.
-
In the Graphics window, click through the
Cylinder : Temperature and Cylinder : Pressure tabs.
The following plots display the results after the run:

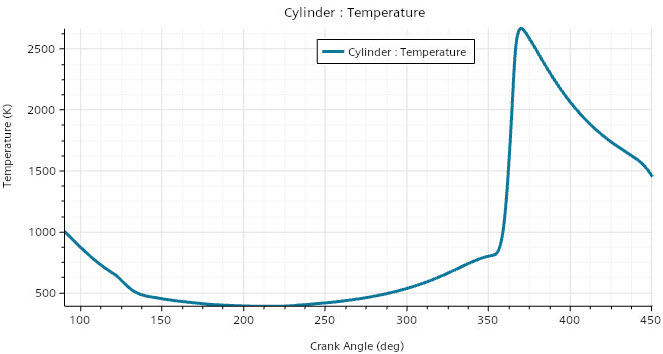

The temperature in the cylinder reaches its maximum value of 2664.23 K at 369.64 deg CA.

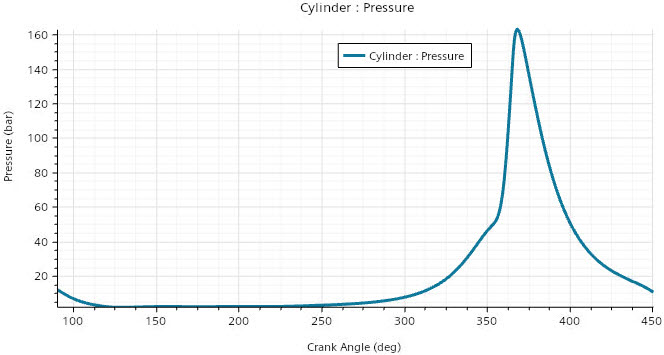

At 367.79 deg CA, the pressure in the cylinder reaches its maximum value of 162.67 bar.
Examine the scenes for fuel/air equivalence ratio and reaction
progress variable:
-
In your working directory, click through the saved image files. The saved scene
files can be animated with a media program of your choice:
