问题描述

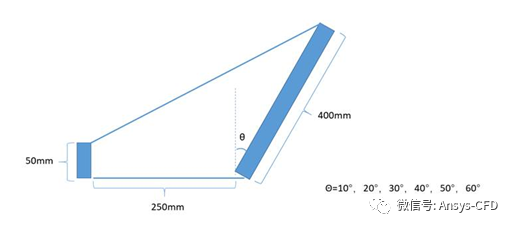

多孔介质是倾斜的,如下图所示,该如何设置其参数呢?

解决方案
多孔介质是倾斜的时候,可以用Plane tool让软件自动计算Direction-1 Vector和Direction-2 Vector。其余参数按照正常模型来设置即可。Plane tool的使用方法如下:

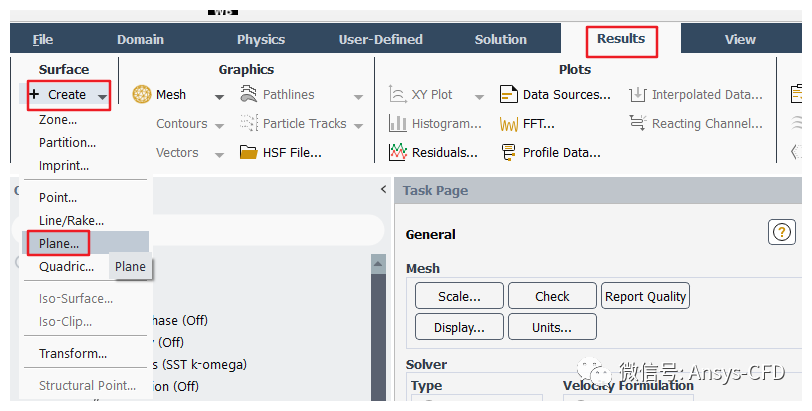

1.菜单栏选择Results->Surface->Create Plane 打开Plane Surface窗口,如下图

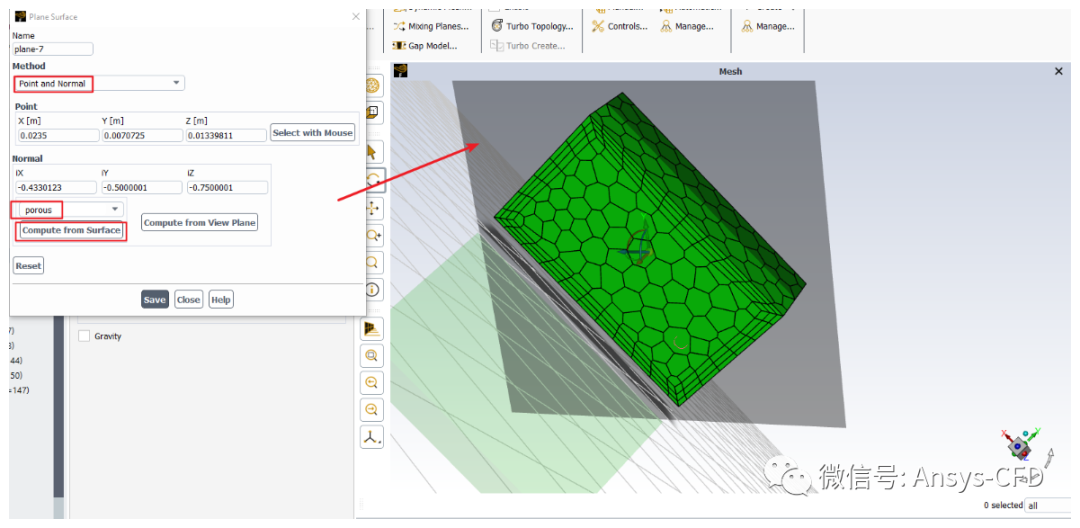

2.在Plane Surface窗口,选择用Point and Normal的方法,选择一个点和一个面,点击compute from surface,计算出该多孔介质区域的法向量。注意,此时不要关闭Planesurface窗口,要保证Plane surface窗口处于开启状态。如下图

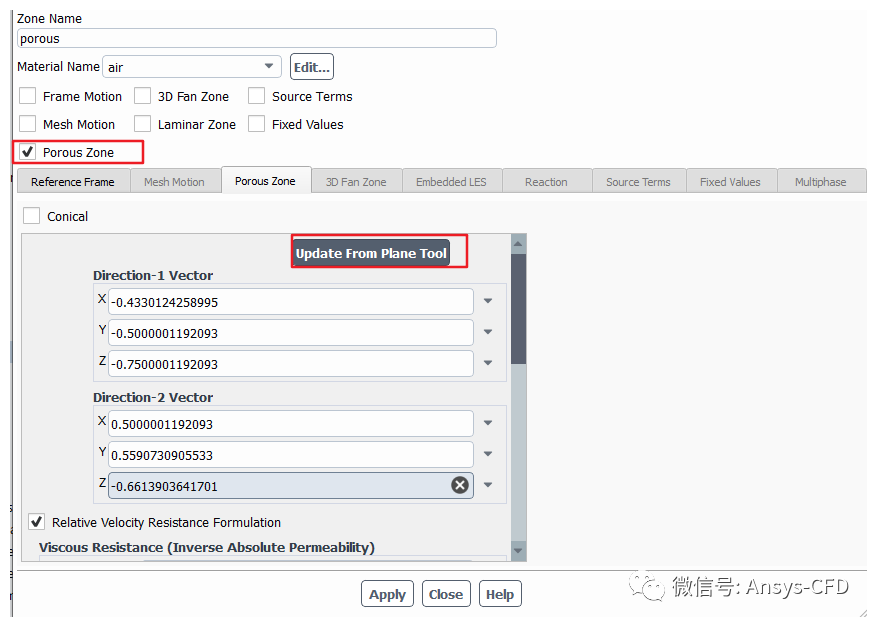

3.在多孔介质设置窗口,点击Update from Plane Tool,软件会自动计算出Direction-1 和Direction-2。如下图所示。
